Access Control System > Biometric Time & Attendance + Access Control > TRAC - 6

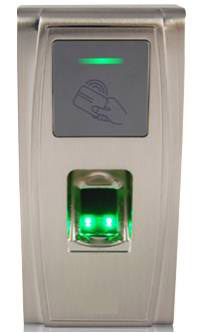

TRAC - 6 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The device features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and RS485 are available that the device can be used in different network. TCP/IP communication makes sure the data transition between the device and the PC can be easily done within several seconds. TRAC - 6 can be used in tough environment because of the IP54 protection index and the wide range of operating temperature.

Technical Specification
  • Dimension(WxHxD): 90.5 X 190 X 43.5 mm
  • Fingerprint Capacity:1,500
  • ID Card Capacity:10,000
  • Transaction Storage :1,00,000
  • Communications: RS485, TCP/IP ,USB
  • Identification time : < =2S
  • FAR: <=0.0001%
  • FRR: <=1% Operating
  • Temperature : 0°C - 45°C
  • Operating Humidity : 20%-80%
  • Sensor: OEM Optical Sensor 500 DPI
  • Access Control Interface: 3rd party electric lock, door sensor, exit button, alarm
  • Power Supply: 12V DC
  • Standard Function: Time Zone ,Multi-identification ,Duress mode ,Anti-Pass Back
  • Optional Function: Mifare
  • Wigand Signal: Input & Output
  • Alogrithm Version: Finger v10.0
  • Index of Protection: IP54
  • Language: English
